Started installing the AMG Paddle Shifters in my car yesterday. Ntt quite done yet, but here's a step by step of how I did it:

Mercedes AMG Paddles:

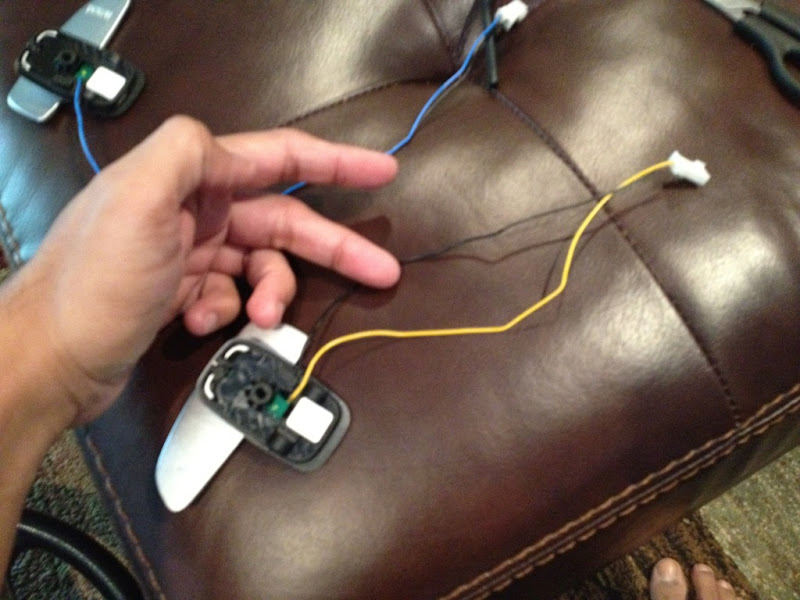

Start by removing the sheathing on the two wires attached to the paddles:







Mark an outline of the shape of the paddles base on the back of the steering wheel:





I decided to use a rotary tool instead of a bladed instrument to cut out the holes. Not a great idea, but then again..I'm not as praticed with using a Dremel-type tool. Those with more experience may do better.

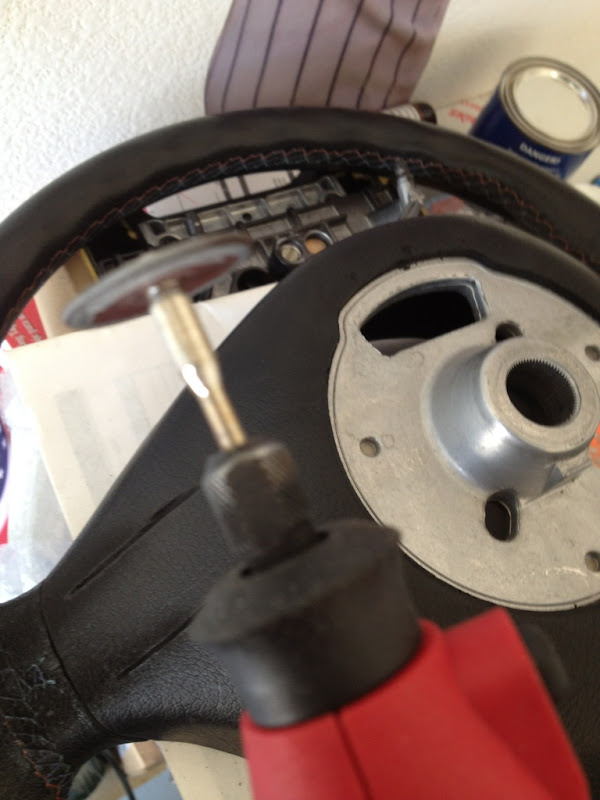

Start cutting to expose the metal backing plate that runs behind the 3 o'clock and 9 o'clock positions:







Drill two holes in each metal plate. One for the mounting hole on the paddles and one to run the wires from the paddles into the steering wheel.

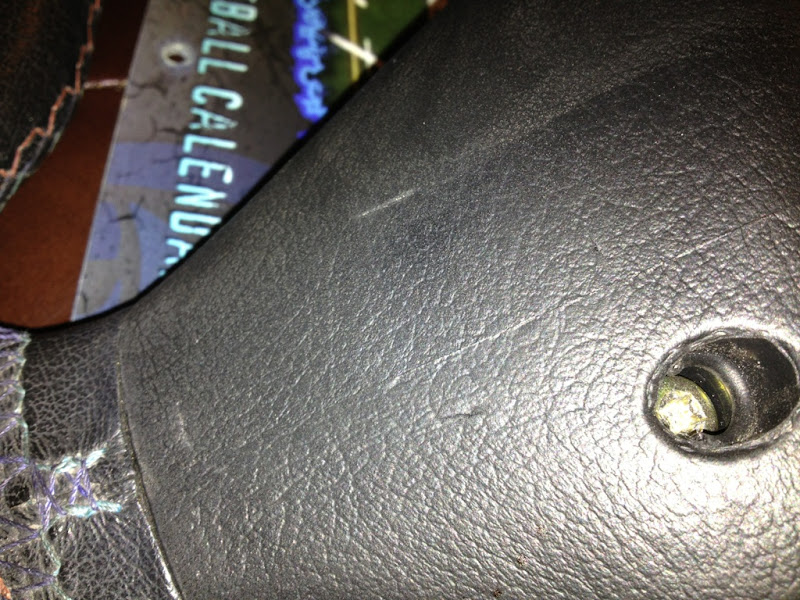

Looks like a hackjob, but at least it won't be visible with the wheel mounted back on the car.
