:: ECS Tuning :: Genuine BMW S54 Vanos Filter Kits ~ AVAILABLE ~ W/ DIY Video!

The Vanos on your BMW controls the variable cam timing based on oil pressure.

If the filter in the Vanos system gets clogged, the oil pressure can vary and not let your engine perform the way it was intended.

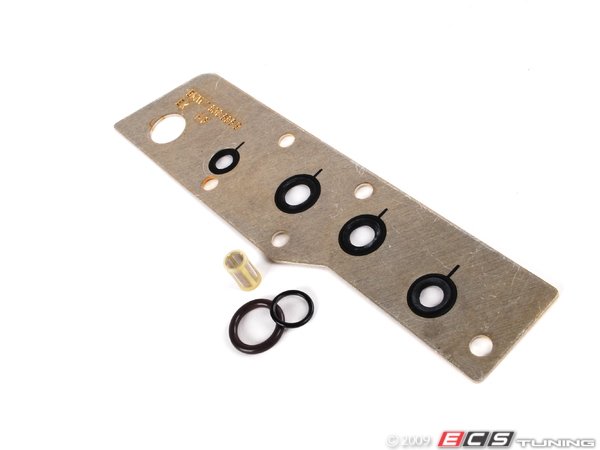

This preventative maintenance kit includes the Vanos filter, o-rings, and our level II also contains the sealing flange for the Vanos solenoid that commonly seeps oil.

Click HERE to order or for more information.

Level I



Level II



Level III

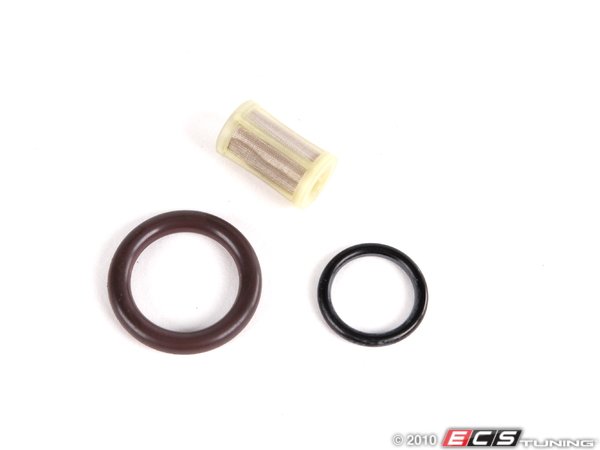

Vanos filter
O-rings
Sealing flange for the Vanos solenoid that commonly seeps oil.
Complete valve cover gasket set
Vanos unit sealing gasket



Click HERE to order or for more information.

As always please let us know if you have any questions!

Feel free to shoot me a PM or email.

Cheers,
Joe

How often do you have to replace this vanos filter?

Originally Posted by trism3

How often do you have to replace this vanos filter?

ECS recommends a filter change around 30k miles and torque of the sealing bolt 20ft lbs.

Thanks again for the orders everyone and let us know if you have any questions!

I replaced my vanos filter with vanos filter kit 1, I broke a white small ring (next to small ring). Right now I installed the kit with missing the white ring. Is it OK without it? Also the small ring included in the vanos filter kit 1 is thinner than the old one I took out. Is it OK? I have not start my car yet after installed the kit.
Please help.

Originally Posted by trism3

I replaced my vanos filter with vanos filter kit 1, I broke a white small ring (next to small ring). Right now I installed the kit with missing the white ring. Is it OK without it? Also the small ring included in the vanos filter kit 1 is thinner than the old one I took out. Is it OK? I have not start my car yet after installed the kit.
Please help.

We would never recommend installing things with missing parts. It is important to replace any and all broken pieces so that everything will be running in the correct condition.

Hi Joe:

Just used your ECS kit to replace the filter and o rings. Video was very helpful..thanks.

Question however: The lower O ring that came out was flat and fully filled the gap between the dreaded white spacer and the steel shoulder, whereas the new O ring has a normal circular profile and is much narrower than the gap.

The obvious answer is that it flattens over time, but it does not appear to have the "bulk" to fully fill that gap?

I checked the part number to REAL OEM, and it appears to be the correct part.

Any insights?

Thanks

John Corbs

All necessary parts come with the kits. You are correct in your assumption, it does flatten over time like the one removed.

..

...

Thanks again for the orders everyone and let us know if you have any questions!

Originally Posted by ECSTuning

All necessary parts come with the kits. You are correct in your assumption, it does flatten over time like the one removed.

BUT, if it doesn't fill the gap the same way as the stock (it's too thin) why would I buy it? Can't you come up with an o-ring that is thicker so it doesn't slide all over the place?

Thanks for the heads up, jcorbs...

Thanks for the orders guys!

HERE is an updated link to the page, I had a few PMs saying the original was having issues but I'm not able to edit the original post due to it's age.

Originally Posted by tice03

BUT, if it doesn't fill the gap the same way as the stock (it's too thin) why would I buy it? Can't you come up with an o-ring that is thicker so it doesn't slide all over the place?

Thanks for the heads up, jcorbs...

By design during finally assembly the rings are flattened and fully fill the gap. This design allows for a proper seal during expansion and contraction of the metal.

ECS Tuning

Does the E39 have this kit? my is a 01 525.

Originally Posted by Dmendez

Does the E39 have this kit? my is a 01 525.

The M54 does not have a filter change kit as the S54 does.
